Major SBQ Steel Mill Producing Rounds, Rounds Cornered Squares

& Bar in Coil - 750,000 TPY of SBQ Per Year -  200 Ton Electric Arc Furnace & 14" Bar Mill



Facility Over View Video:  Alton Steel Facility Overview Video

Partial Material Handling Overview: Alton Steel Partial View Material Handling



Please click here to view the catalog and to register for Day 1.



Please click here to view the catalog and to register for Day 2.



Please click here to view the catalog and to register for Day 3.



EQUIPMENT HIGHLIGHTS

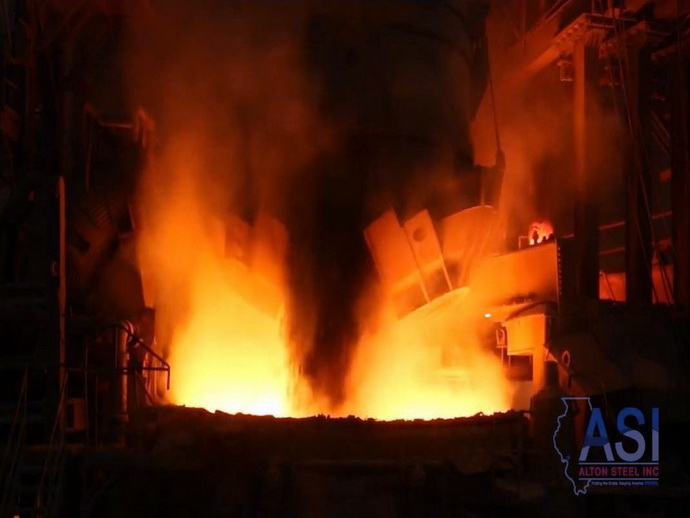

Mannesmann Demag 220-Ton Electric Arc Furnace System:

• Mannesmann Demag 220-Ton Electric Arc Furnace, with 24'D Shell; Water Cooled Side Panels; Oxygen Burners, 3,150°F Maximum Temperature; and GE Class Flow Transformer, Rated @ 76 MVA, 24" Electrodes
• GE Class Flow Transformer, Rated @ 76 MVA, 24" Electrodes
• EMCI 220-Ton Ladle Metallurgy Furnace; 14'W x 15'H Chamber Size, 3,150°F Maximum Temperature; with 18"D Electrodes; and Tower Feed; with PX1 Upgrade
• CIS Model SHTD-202-24 Electrode Heating System
• Central Engineering Gas Fired Horizontal Ladle Pre-Heaters; Maximum 2,000° Temperature; with 30 hp Blowers
• Thermal Transfer Products Gas Fired Vertical Ladle Pre-Heater; Maximum 2,000° Temperature; with 20 hp Blower
• Bag Dump Station; with Elevator; Hoppers; Shaker; and Metering Feed

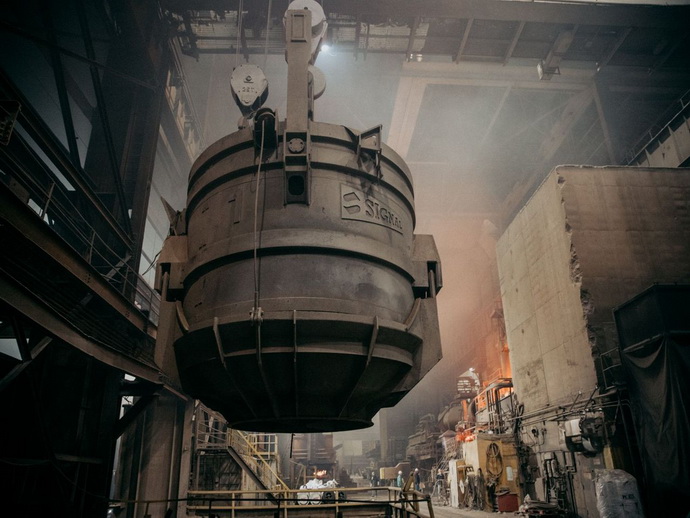

• (10) 220-Ton 14'W x 15'H Elliptical Hot Melt Ladles; with Flo-Con Bottom Slide Gates; and Thermal Vision System
• (5) 150-Ton 22'D Scrap Charging Buckets; 3,200 Cubic Feet Capacity
• Track Mounted Ladle Transfer Cars
• (2) ABB 200-Ton Scrap Weighing System; Each with Radiation Detector; (Upgraded 2021
• (2) Hutton 230-Ton Scrap Ladles; Each with Ladle Transfer Cart
• Westinghouse 76-MVA Furnace Transformer/ 66-MVA Regulator Transformer
• American Air Filter 500,000-cfm Dust Collectors; Each with 1,250 hp Motor; Process Piping; and Variable-Frequency Drive, 4-Compartment Baghouse; Approximately 350,000 cfm Capacity
• Associated Chillers; Hydraulic Systems; Pumps; Motors; PLC Control Systems; Charge Buckets; Critical Spares; Pulpit Type Tower Office, with Control Console; Cameras, with Monitors; Automatic Samplers; Electrical Switchgear; and Controls



EBT Electric Arc Furnace:

• Lectromelt 120-Ton Electric Arc Furnace; with Related EBT Shell, Roof; All Related Structure; Lift Arms; Water Cooled Cables; and Electrode Arms, (4) EAF Charge Buckets. Spare EAF Roof. Turret Gear Drive. Tamini Transformers 107 MVA EAF 3-Phase Transformer, 34.5 kV Rated Voltage

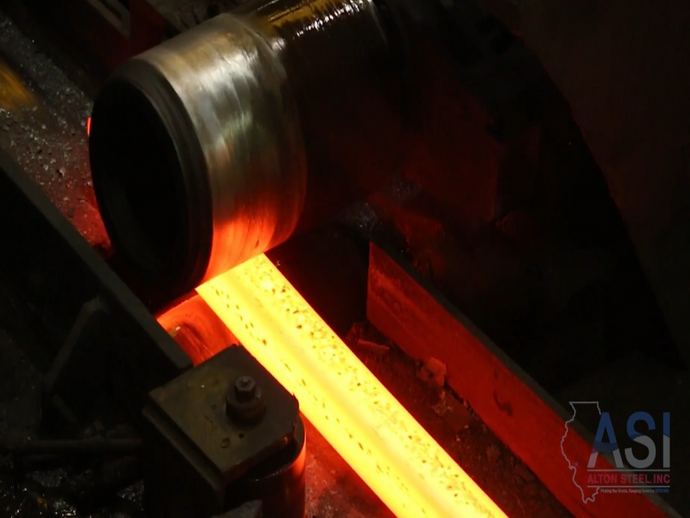

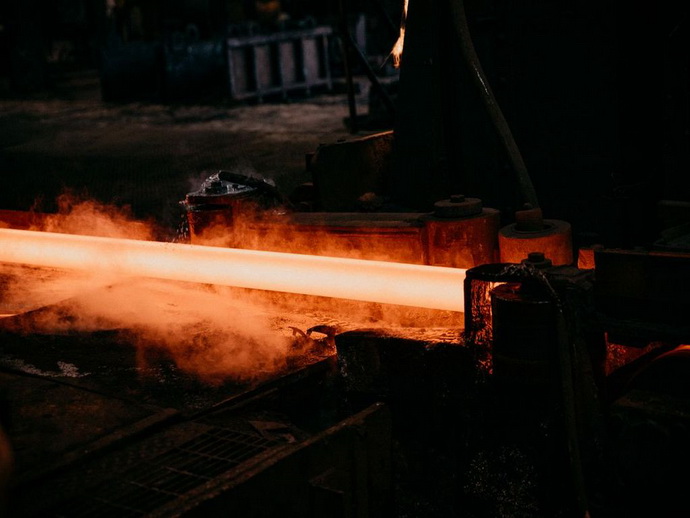

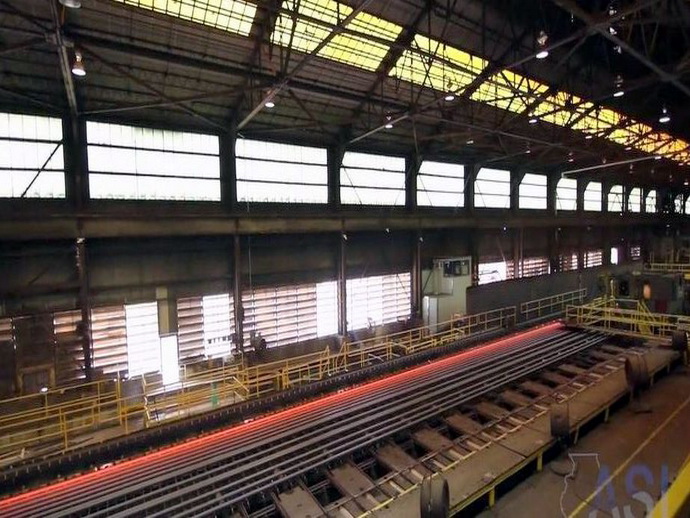

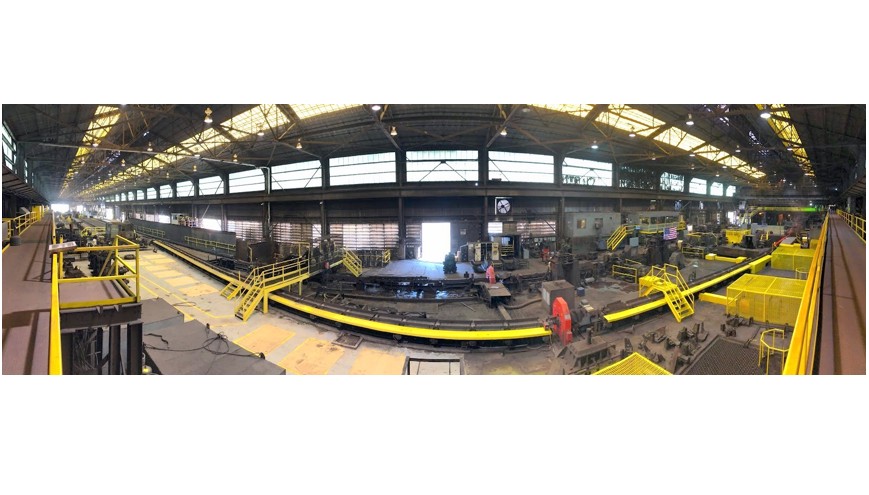

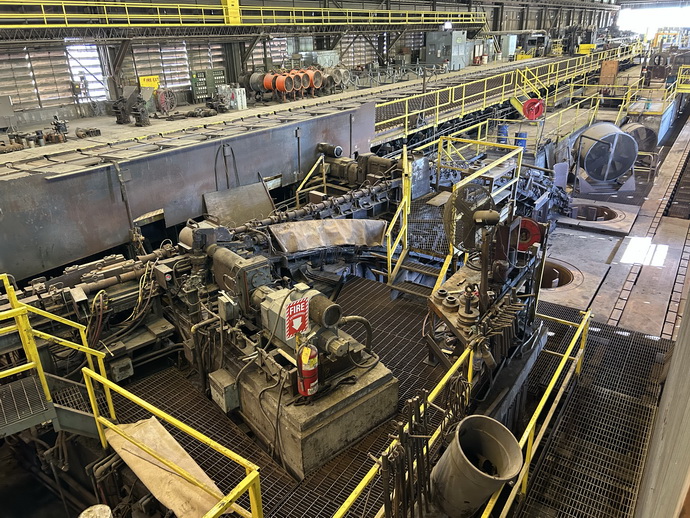

Moeller Neumann Continuous Roughing Rolling Mill/ Bar Mill:

• (Updated 2022) Moeller Neumann Continuous Rolling Mill with a bar capacity Diameters :0.750” to 3.9” Length 16’ to 60’, (Capable of Rounds, Round-cornered Squares, Hex, and Bar-in-coil), consisting of Charge Table with Unscrambler & Index Table, Allen Bradley CTR, Natural Gas Fired Pre-Heat Furnace w CTR, Birdsboro 5-Stand Billet Breakdown Mill , Blaw Knox Entry Pinch Roll, Blaw Knox #1 Shear, Moeller Neumann Roughing Mill with (4) Neumann 16” x 27 ½” Vertical & Horizontal 2 High Mill Stands w/ 600 HP Dc Motors with Electric Controls, Moeller Neumann Intermediate Mill with (5) Neumann 16” x 27 ½” & 15” x 24” Vertical & Horizontal 2 High Mill Stands w/ 500-600 HP Dc Motors & Electric Controls & (3) Neumann 2 High Mill Stands, (2) 2017 Lap Model RDMS 120-4 Measuring Machines, Cold & Hold Infeed Table 26’ x 80’, Blaw Knox Shear 500 Ton 2” Round Cap 175’ Bar Cooling Bed & Shuffle Table, Advanced Machine Design 4" Hydraulic Bar Shear with Bar Table, (6) GE Transformers, Rockwell Automation Overall Line PLC Controls, Shipping Station; with 60' Run Out Table, Cooling System; with (5) 150 hp Pumps, Spare Mill Stands; Rolls; Crop Shears; Pinch Rolls; Transfer Rolls; Feed Tables; Motors; PLC and Solid State Controls; Burners; Hydraulic and Cooling Systems; Hot and Cold Well Pumps; Pump House Scale Drag System; Process Piping; Valves; Controls; (3) Hot Wells; (3) Cold Wells; Cooling Tower - Bar Mill & Bar In Coil Line Video https://youtu.be/NSLCWjik4l8



Koppers 6-Strand Continuous Billet Casting Line:

• Koppers 6-Strand Continuous Billet Casting Machine; 130 Ton/Hour Capacity, 27' Mold Capacity; with Individual Pour Control,(6) Custom Designed & Fabricated Torch Billet Cutting and Sizing Systems; with Natural Gas/Oxygen Torch Cutters, Upgraded Mold Lube System, (30) 7" x 7" Copper x 20' Casting Billet Molds; with Stirring System, Associated Control Room; with PLC Line Controls; Monitors; and Cameras



Vesuvius Model C52 Tundish Slide Gate System:

• Vesuvius Model C52 Tundish Slide Gate System, (22) Slide Gate Housings; (12) Hydraulic Cylinders, (Attached to Gate Housings); (10) Base Plate Assemblies, (Fixed In Tundish); (4) Electric Motors; (2) Pallet Jack Stands; Battery Powered Pallet Jack; Rotating Manipulator Stand; Storage Stand (Holding (2) Assemblies); (3) Spare Rockers; (11) Lifting Chains; Miscellaneous Tools; and Spare Parts

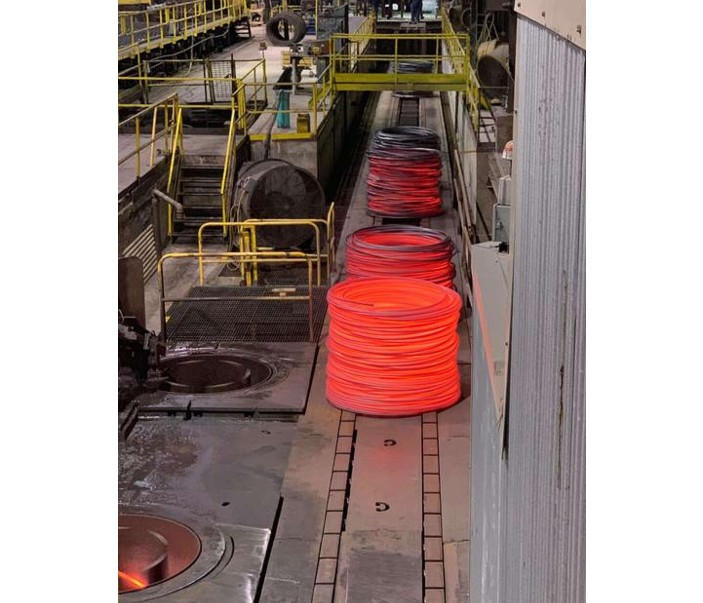

Blaw-Knox 14” Dual Reel Bar In Coil Line:

• Blaw-Knox 14" Dual Reel Bar-In-Coil Line, 0.750" to 1.812"D Bar, 6,000 Lb. Maximum Coil Weight; with (2) Fabris Coiler Entry Systems, with Delivery Troughs; 2-Strand Water Box; Switch; 2-Strand Trough; Anti-Twist Guides; Delivery Troughs; Pinch Roll Guides; Rollerized Turndown; Cross Pusher; Push-Off Assemblies; Coil Sweep; Flat Top Cooling Conveyor and Elevator; Coil Upender; Star, Wheel 6-Arm Turnstile; Coil Loader Unit; Hydraulic Power Supplies; Electrical Controls and Panels; and Spare Parts - Bar Mill & Bar In Coil Line Video https://youtu.be/NSLCWjik4l8



Roll Bar Straighteners:

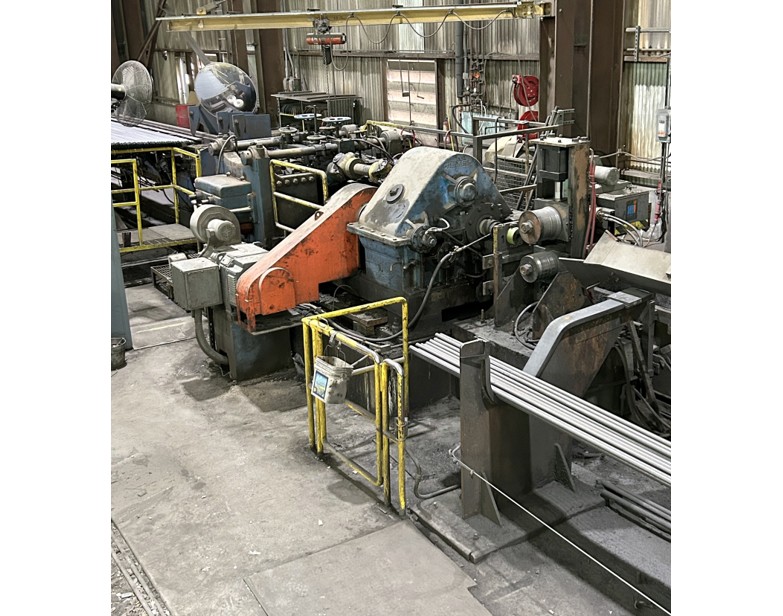

• (Rebuilt by D&R in 2017) Meeco Model 2R1M 4 ½” Bar Straightener, ¾” to 4 ½” Bar Diameter, Size 3; 125 hp Drive Motor; with Meeco Model HD3 13-Strand Gravity Drop Feed Conveyor System,60'L Bar Capacity; with Pneumatic Transfer Arms; Powered Guide Rolls; Entry Table; Horizontal Hydraulic Pinch Rolls; Powered Guide Rest, with Hydraulic System; Mayfran Scale Removal Conveyor; 25 hp Hydraulic System; Vertical Hydraulic Pinch Rolls; Meeco Model 3SS 12-Strand Powered Exit Conveyor, 60'L Bar Capacity, with 2-Stage Accumulator; Pneumatic Kicker Arms; Control Console –or a video of this machine running please click on the following link Meeco Model 2R1M 4 Inch Bar Straightener

• Medart 3 ½” 2-Roll Bar Straightener, 5/8” to 3 ½”Bar Diameter, Size 2; 60 hp Drive Motor; with 60' Gravity Feed Loading Rack; Bar Indexing Feed System; Entry Pinch Rolls; Operators Panel; Exit Pinch Roll, 3-Point Hydraulic Drop Exit Chute, with Accumulator; Control Room, with Allen-Bradley Model PanelView Plus 1000 Touch Screen PLC Control; 10 hp Hydraulic Unit; and Mayfran Inclined Metal Belt Conveyor

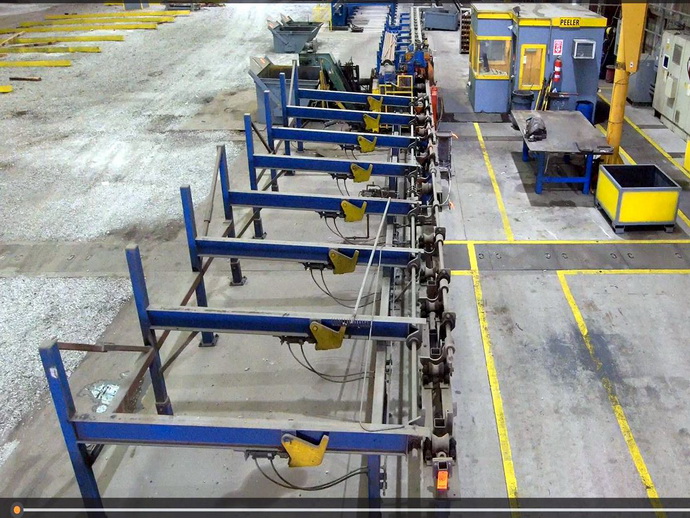

Kieserling Model WDH-125 Bar Peeler:

• (Upgraded 2019) Kieserling Model WDH-125 Bar Peeler, 25-130mm Rough Bar Diameter, 25-125mm Finished Bar Diameter, 2.25-8M Bar Length, 1-15 M/Minute Feeding Speed, 200 kW DC Cutting Head Motor, 27-75mm 1st Range Diameter, 75-125mm 2nd Range Diameter; with 35' Gravity Feed Loading Rack, Bar Indexing Feed System; with Guides and Tube Loader; Input Pinch Roll System; Exit Carriage, with Guides; Exit Roller Conveyor, with Pneumatic Dump System; Bar Accumulator Cradle, with Load Cells and Mettler Readout System; Keyence Model LS-9120MR Laser Gauging System; Hydraulic Power Supply; Console Control System; and Mayfran Inclined Blt Conveyor - To view this machine in operation please click on the following link Kieserling Model WDH 125 Bar Peeler Video



Horizontal & Vertical Band Saws/ Cold Saw:

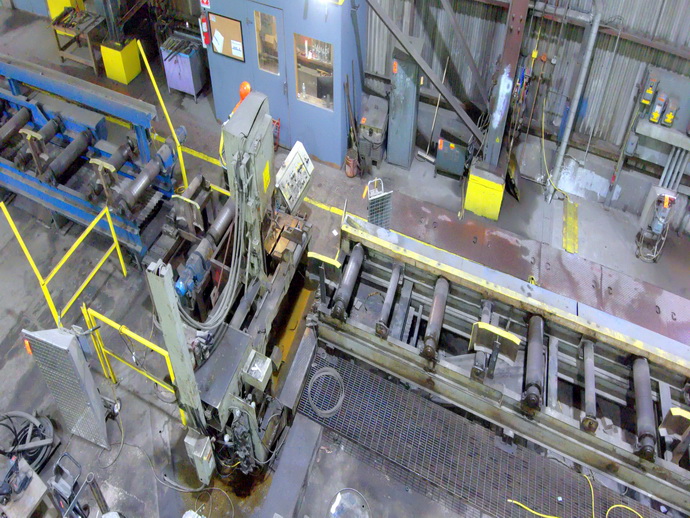

• HE&M Model V130M 20" x 24" Automatic Vertical Band Saw, 45' Heavy Duty Entry Conveyor; and 40' Exit Powered Conveyor
• 2011 DoAll Model 500DS 14" x 20" Horizontal Band Saw
• DoAll Model C-1321DS 13" x 21" Horizontal Band Saw
• DoAll Model C-916M 9" x 16" Horizontal Band Saw
• Kaltenbach 52" Heavy Duty Cold Saw

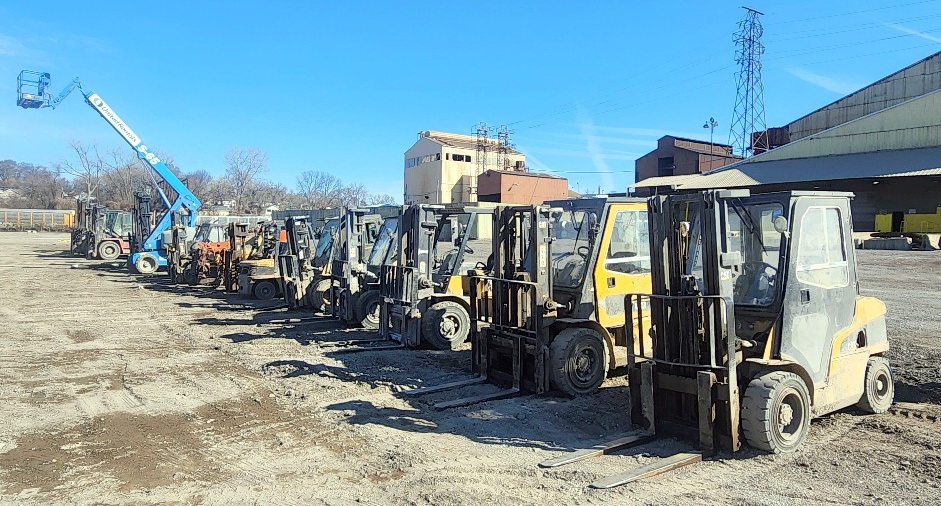

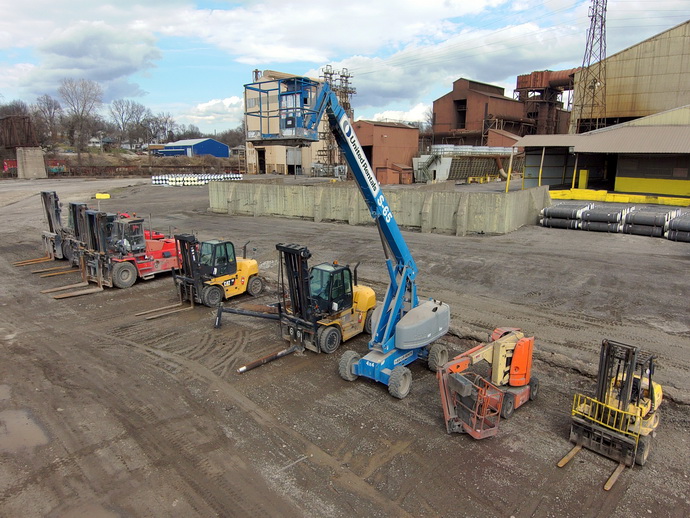

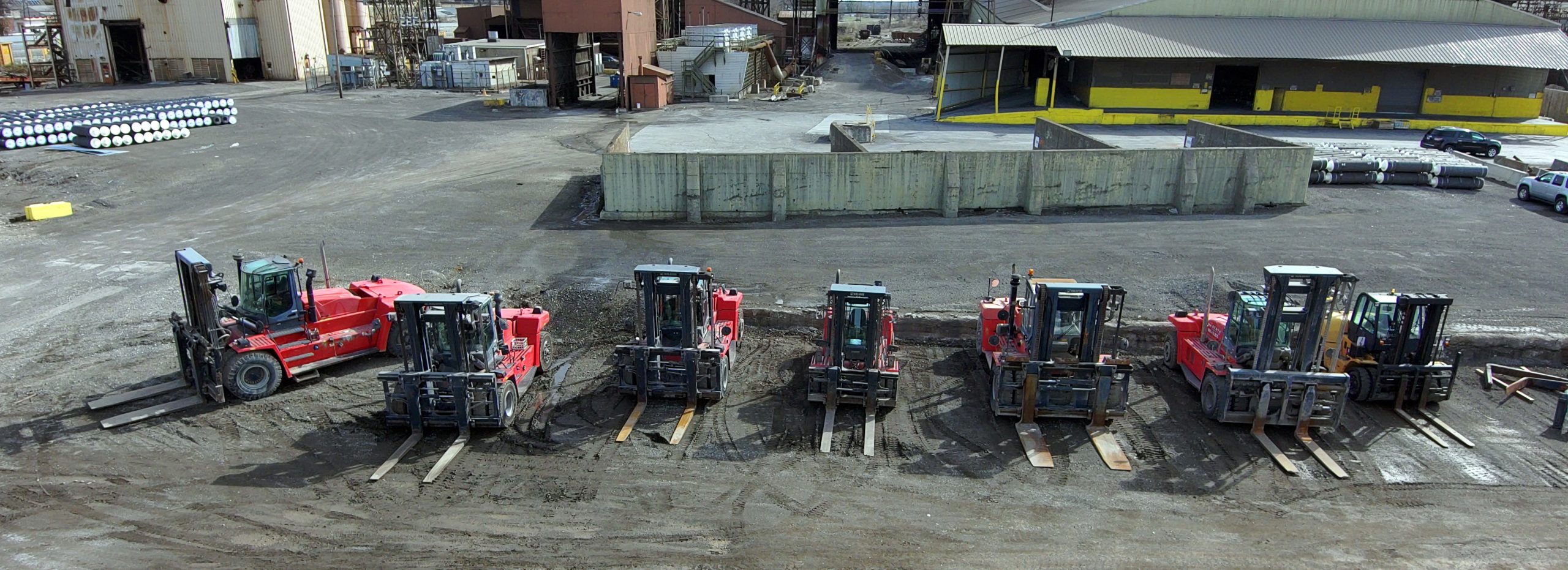

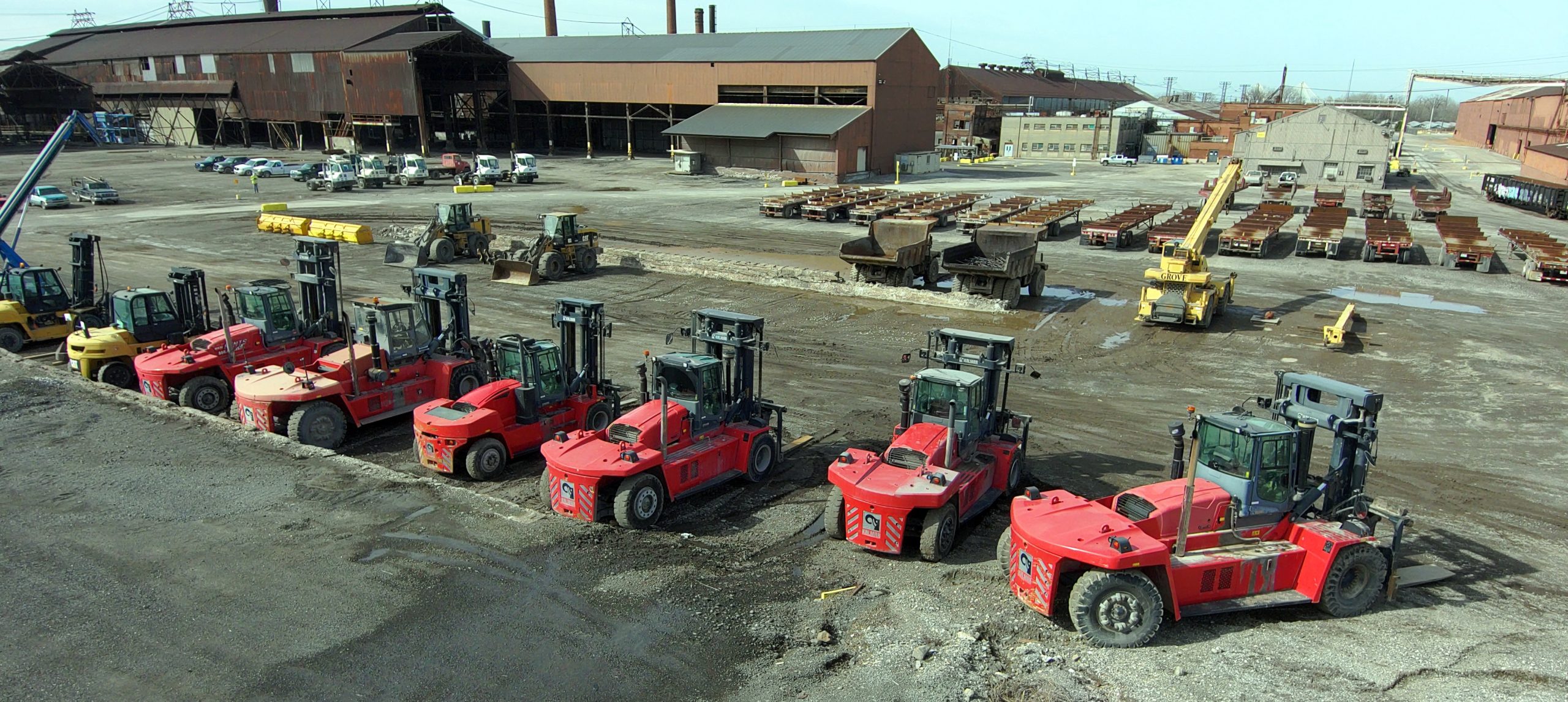

Material Handling/ Construction/ Boom Crane/ Articulated Boom Type Aerial Lifts:

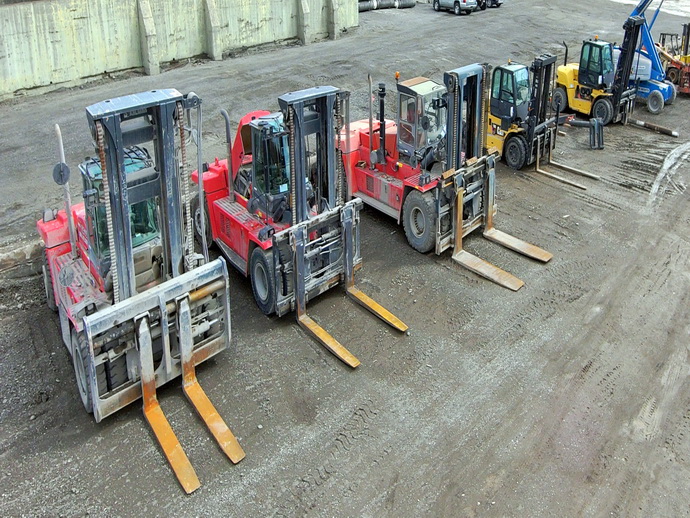

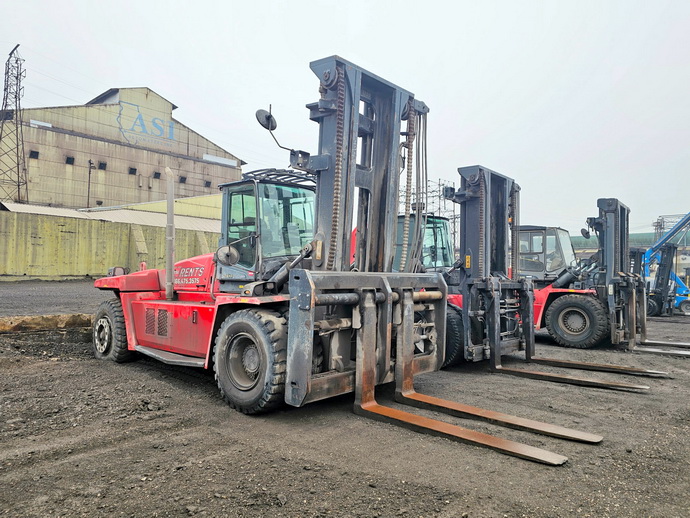

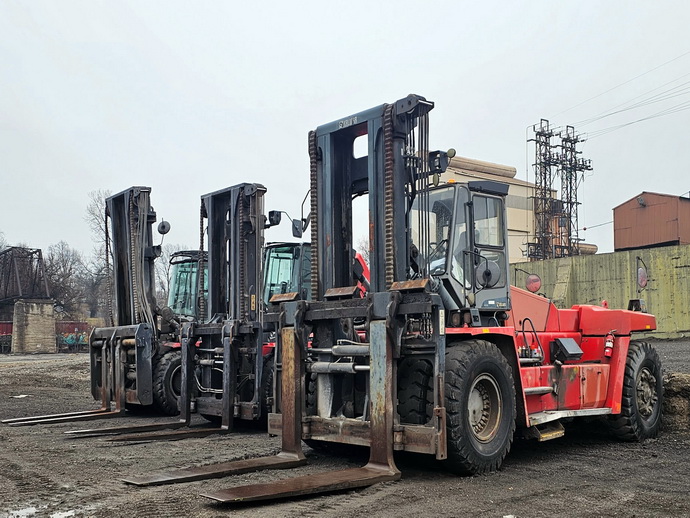

• (Qty 2) To 2019 Kalmar Model DCG330-12, 72,000-Lb. Diesel Lift Truck
• (Qty 2) 2020 Kalmar Model DCG250-12 55,000-Lb. Diesel Lift Truck
• (Qty 3) To 2012 Kalmar Model DCD250-12, LB 55,000-Lb. Diesel Lift Truck

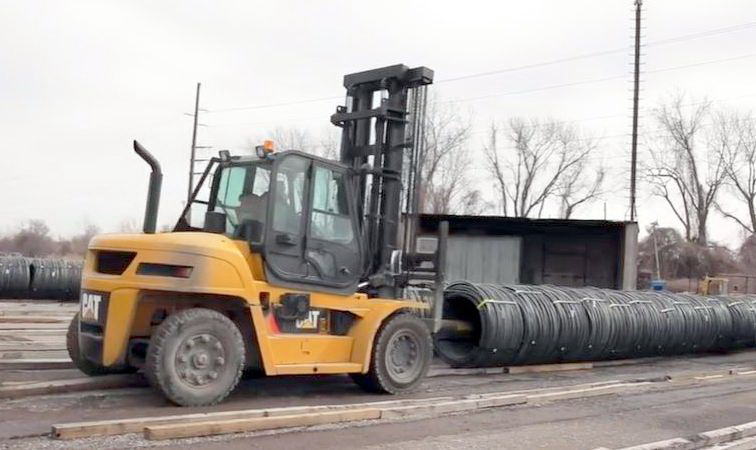

• (Qty 2) 2012 Caterpillar Model P22000, 22,000-Lb. Diesel Lift Truck
• 2019 Kalmar Model DCG160-12, LB 36,000-Lb. Diesel Lift Truck

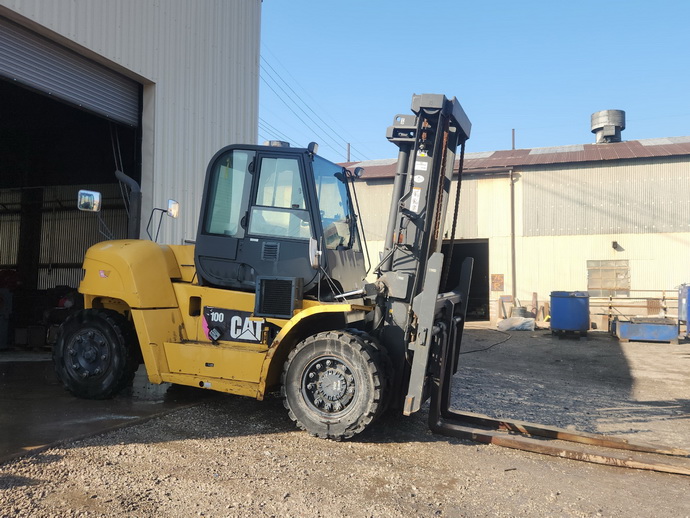

• 2023 Caterpillar Model DP50CN1, 10,000-Lb. Diesel Lift Truck
• Caterpillar Model V620 57,300-Lb. Diesel Lift Truck
• (Qty 8) Caterpillar 6,000- 10,000 -Lb. Diesel Lift Truck
• Mitsubishi Model FG25N 5,000-Lb. LP Gas Lift Truck
• 2014 Mitsubishi Model FD40N1 8,000-Lb. Diesel Lift Truck
• Hyster Model H80XL 8,000-Lb. LP Gas Lift Truck
• (Qty 2) Waldon Model 8500C Old Coil Ram Truck
• (Qty 2) John Harder Model LB Wide Carriage Masts
• Grant-O-Matic Model GOM360BDR Furnace Wrecker

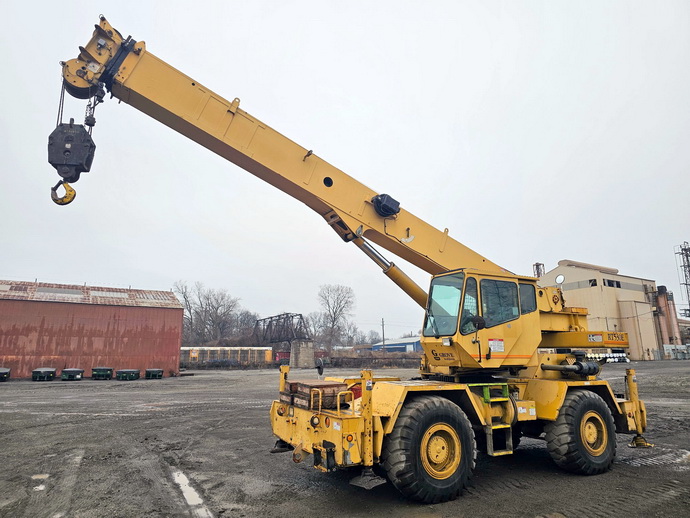

• Grove Model RT530E 30-Ton Rough Terrain Boom Crane

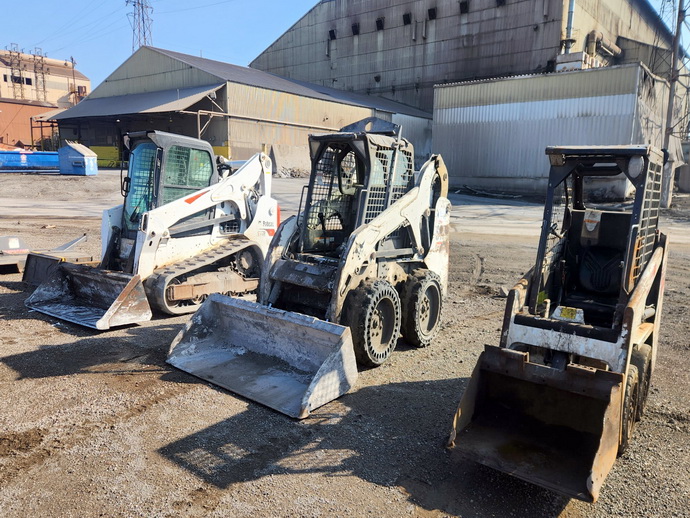

• (Qty 4) To 2019 Bobcat Models T770, S175, S70 & S220 Skid Steer Loader

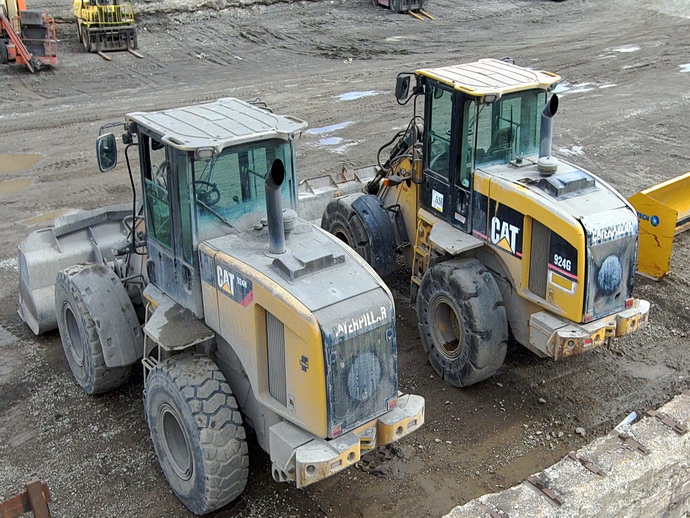

• Caterpillar Model 924H Articulated Frame Wheel Loader
• Caterpillar Model 980F Articulated Frame Wheel Loader
• Caterpillar Model 924G Articulated Frame Wheel Loader
• Genie Model S-65 Diesel Boom Type Aerial Lift
• JLG Model E300AJP Articulated Boom Type Aerial Lift
• Skyjack Model SJIII-3219 Maximum 550-Lb. Electric Scissor Lift
• Hyster Model S100E 10,000-Lb. LP Gas Lift Truck



PLEASE CLICK HERE TO VIEW VIDEOS OF ALTON STEEL KALMARS & MATERIAL HANDLING EQUIPMENT



Chem & Metrology Lab:

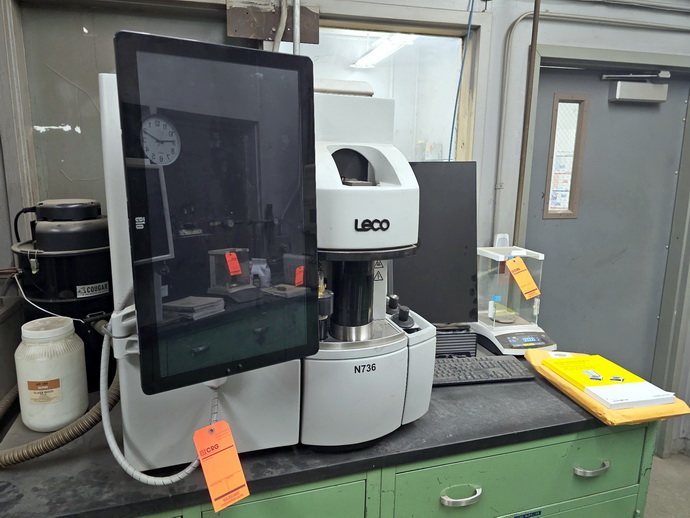

• 2023 Thermo Scientific Model N736 Oxygen Nitrogen Analyzer

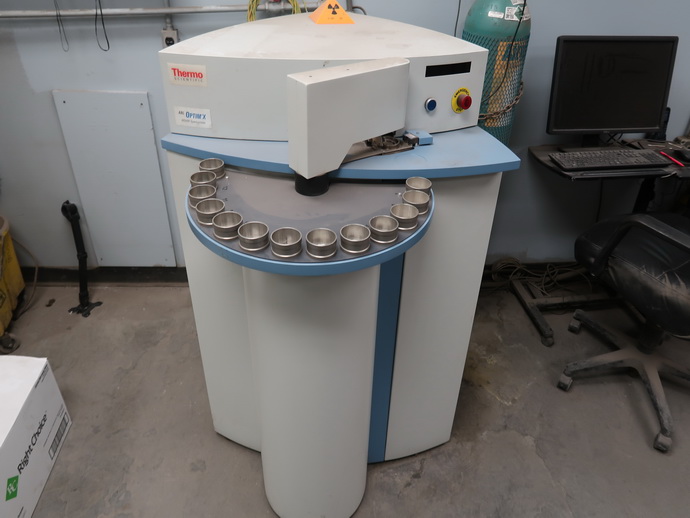

• Thermo Scientific Model ARL OPTIM'X WDXRF Slag Spectrometer
• Mikron Digital Instruments Model PSP80K 80,000-Lb. Programmable Stepping Pellet Press
• (Qty 2) Leco Model CS744 & CS230SH Carbon/Sulfur Determinator
• Eltra Model ONH2000 Nitrogen/Oxygen/Hydrogen Determinator

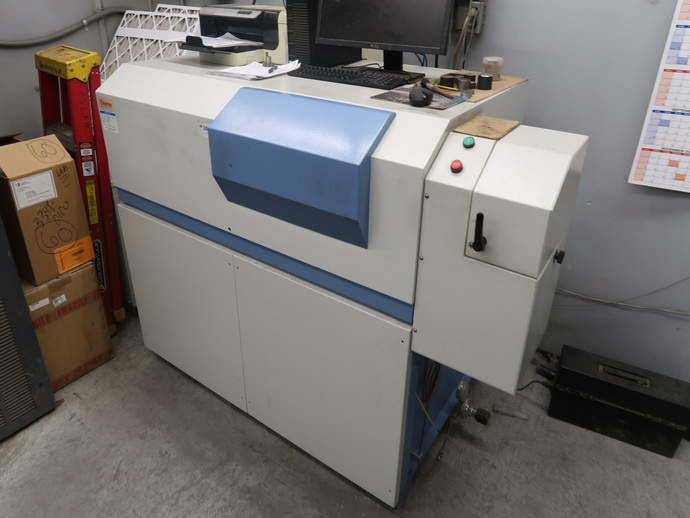

• Thermo Scientific Model ARL3460OES Optical Emission Metals Analyzer
• Applied Research Laboratories Model 3460 AES Optical Emission Spectrometer
• Mikron Digital Instruments Model Aplastar 55 Ring and Puck Mill

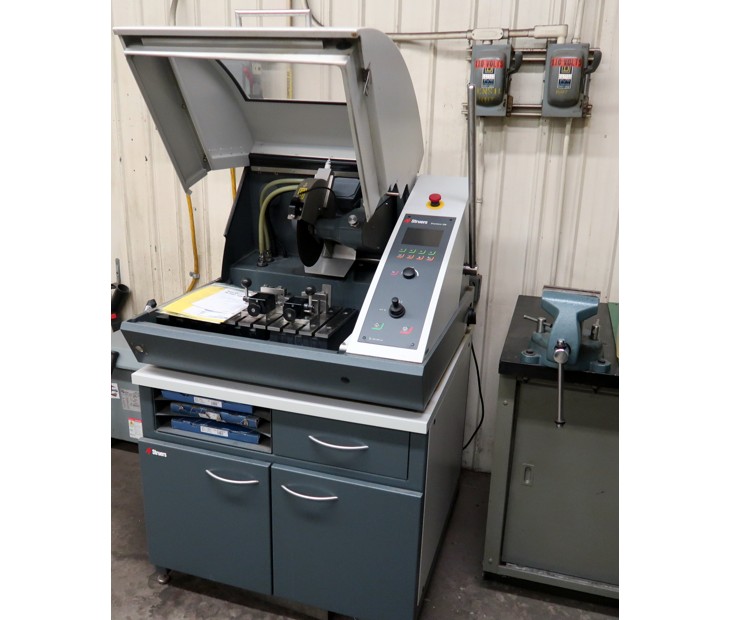

• Struers Model Discotom-100 TableTop Sample Saw
• Tinius Olsen 60,000-Lb. Tensile Tester; with Handheld Pendant Control
• Instron 2000 series hardness tester
• Struers Model Citopress-20 2-Part Mounting Press
• Leco N736 Nitrogen Analyzer
• Instron 2000 series hardness tester
• Struers Citopress-20
• Vulcan 3 series Burnout Furnace
• Leco GR20 High Speed Coarse Grinder
• Niton Portable X Ray Analyzer
• Olympus Model GX51F Inverted Metallurgical Microscope
• Leco Model GR-20 Lab Polisher
• Buehler Model SuperMet 12" Lab Polisher; Lab Benches, Fume hoods, Glassware, Magna-Flux Y-2 MV



Overhead Bridge Cranes:

• Crane Mfg. 300/80/10-Ton x 80' Span Double Girder Top Running Ladle Type Bridge Crane
• Alliance Machine 300/50-Ton x 80' Span Double Girder Top Running Ladle Type Bridge Crane
• Alliance Machine 150/25-Ton x 80' Span Double Girder Top Running Bridge Crane
• (Qty 4) Alliance Machine 25/5-Ton x 80' Span Double Girder Top Running Bridge Cranes
• (Qty 2) Acco 10-Ton x 40' Span Double Girder Top Running Bridge Cranes
• (Qty 2) Whiting Corp. 10-Ton x 100' Span Double Girder Top Running Bridge Crane
• 15-Ton x 65' Span Double Girder Top Running Bridge Crane
• 25-Ton x 60' Span Double Girder Top Running Bridge Crane
• (Qty 3) 2-Ton x 50' Span Double Girder Overhead Bridge Crane
• 3-Ton x 25' Span Double Girder Overhead Bridge Cranes
• Shaw-Box 15-Ton x 35' Span Double Girder Top Running Bridge Crane

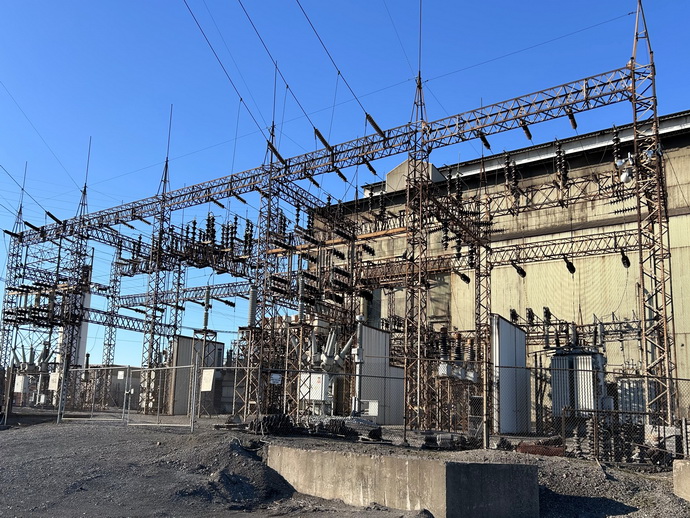

Transformers:

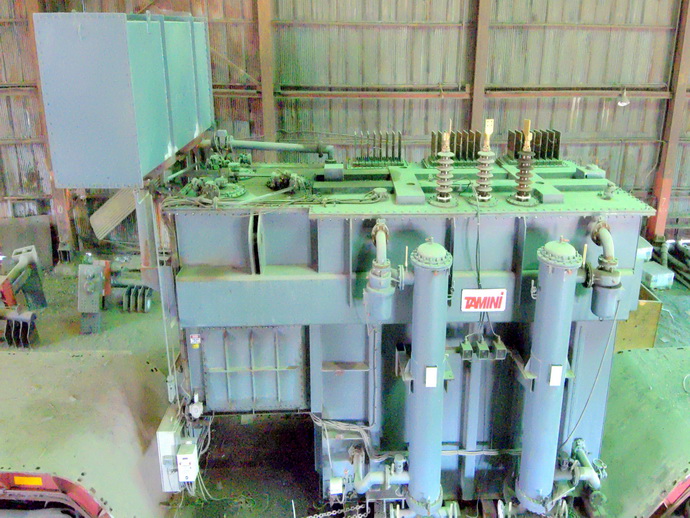

• Tamini Transformer 107 MVA EAF 3-Phase Transformer, 34.5 kV Rated Voltage
• (Qty 3) Westinghouse 68,000-kva Oil Filled Transformer
• (Qty 4) GE / Westinghouse 66,000-kva Oil Filled Transformer
• Westinghouse 52,800-kva Oil Filled Transformer
• (Qty 2) Westinghouse 15,000 -kva Oil Filled Transformer
• (Qty 7) Cooper, GE, Westinghouse, Allis Chalmers, 10,000 -kva Oil Filled Transformer
• (Qty 50) Assorted Transformers Throughout Facility; Sizes From 50 to 7,000 kva; Manufacturers including: Wagner, Westinghouse, Cooper, GE and Kuhlman, Allis Chalmers(Oil Filled, Silicon, Dry, & Askarel) Please Click On The Following Link For a Transformer List with Capacities - Alton Steel Transformer List

·

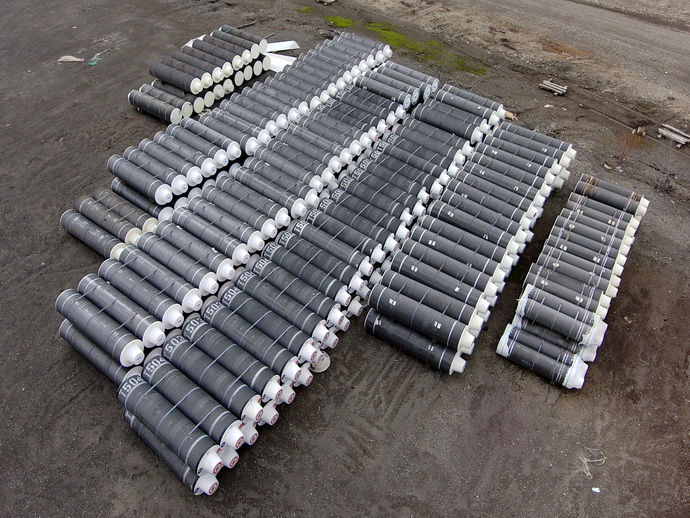

Electrodes:

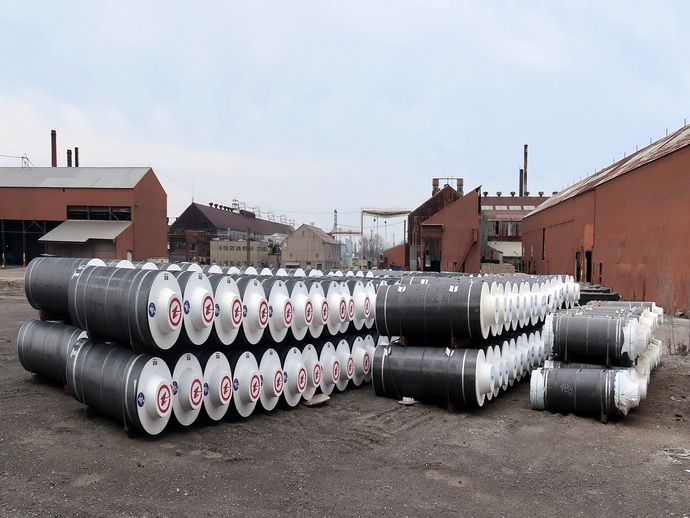

• (257) Graftec 24’ Elect PC Electrodes
• (60) Tokai 24’ Elect PC Electrodes
• (95) GES 18” Elect PC Electrodes
• (32) SDK 18” Elect PC Electrodes



Yard Tractors:

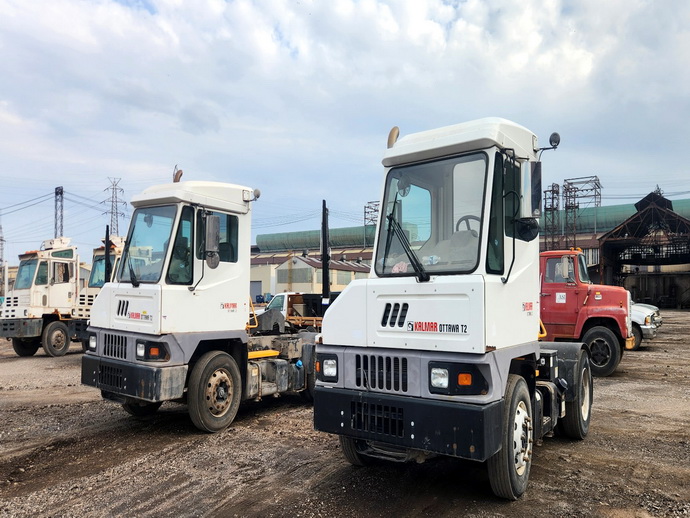

• (Qty 2) 2020 Ottawa Model T2 4X2 Yard Tractor
• Ottawa Model RJS 4X2 Yard Tractor
• Ottawa Model 50 Yard Tractor
• (Qty 2) Capacity Model TJ5000 & TJ7000 Yard Tractor



Vehicles/ Trailers:

• (Qty 7) Ford Model F-150 XL Pickup Truck
• Chevrolet Model Silverado C1500 Pickup Truck
• Ford Model F-350 XL Super Duty Utility Bucket Truck
• (Qty 3) GMC Model Sierra C1500 & 2500 Pickup Truck
• (Qty 2) Euclid Model R22 & 207FD22-Ton Single Axle Dump Truck
• Mercury Model Grand Marques Automobile
• Mercury Model Villager Minivan
• Ford Model Windstar Minivan
• Ford Model F-600 2-Ton Flatbed Dump Truck
• GMC Model Sonoma Extended Cab Pickup Truck
• Jeep Model Grand Cherokee Sport Utility Vehicle
• Chevrolet Model C3500 Flatbed Truck
• (Qty 20) 30' to 48' Bloom Trailers



Rail Cars:

• Kasgro KRL 30820 Depressed Flat Car Rail Car, Axle Count: 20 axles, typically utilizing 36" wheels, Loading Deck Length: 40’, Load Capacity: Approximately 894,500 lbs (~447 tons), Light Weight (Tare): Approximately 535,500 lbs.
• Kasgro KRL 90012  Flatcar Double Drop Railcar, Load Capacity: 475,200 lbs., Loading Deck Length: 25 feet 0 inches., Loading Deck Height: 2 feet 7 inches., Axle Configuration: 8 axles., Empty Weight 154,500



Plant Support/Additional Machines:

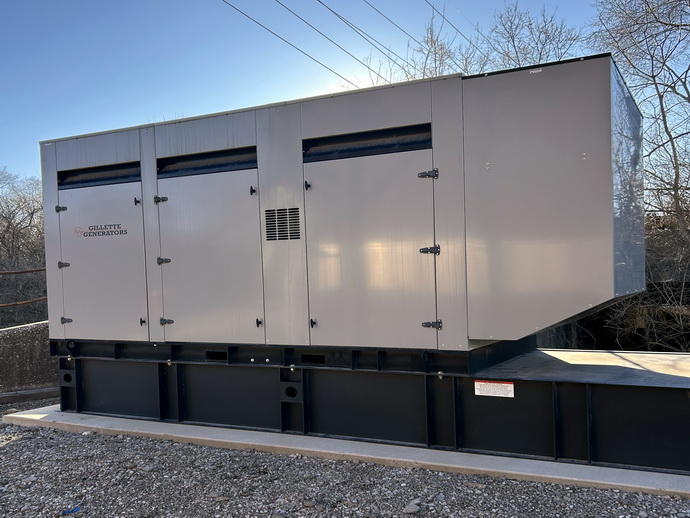

• 2022 Gillette Model SPVD-6000-3-4-2, 660-kW Diesel Generator
• Cummins Model DFGE-5693579 750-kW Diesel Generator
• Generac Model SG0050KG264 50-kW Natural Gas Fired Backup Generator
• (Qty 2) Toledo Model Masstron 160,000-Lb. Above Ground Truck Scale
• 2014 Ingersoll-Rand Model R110I-A125 Air Cooled Rotary Screw Air Compressor, 150HP
• (Qty 25) Club Car, EZ Go, & Yamaha Golf Carts
• (Qty 20) 30' to 48' Bloom Trailers
• (4) Ingersoll-Rand Model SSR-XF150 & SSR-EP200 Rotary Screw Air Compressor, 150HP & 200HP/ Zeks Dryers
• InfoSight Model LL2856-3 Metal Tag Laser Printer
• (Qty 4) PowerBoss, Advance, & American Lincoln Riding Floor Sweepers

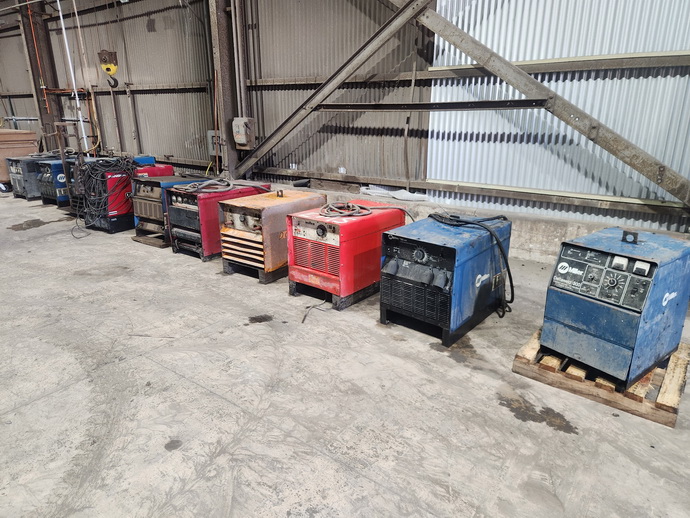

• (Qty 25) Miller, Lincoln, & Hobart Arc, & Multiprocess Welders
• Wastewater Treatment Equipment
• Eimco/Shriver 34 Chamber Filter Press

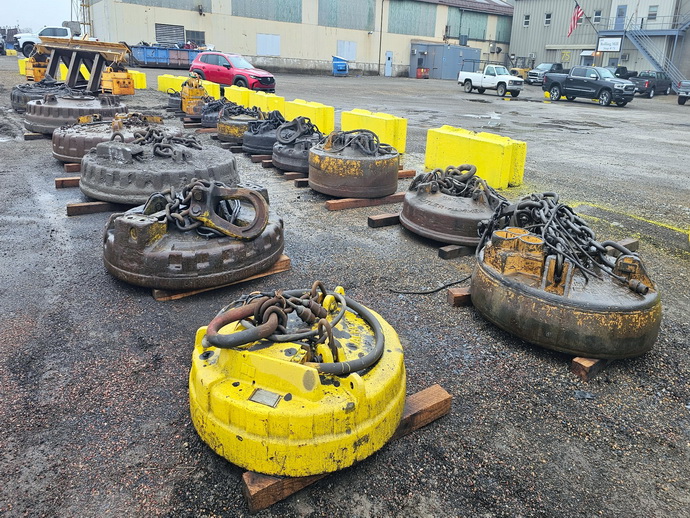

• Numerous Scrapmaster Scrap Magnets/ Several Ohio Lifting Magnets/ Spreader Bars
• Magnaflux Model CE-51 Magnetic Particle Inspection Machine
• Nelson Stud Welding Model 101 Stud Welder
• KRB Model 18M Electro-Mechanical Rebar Bender, 55mm Max. Bar Size; 10 hp Motor; with KRB PLC Control

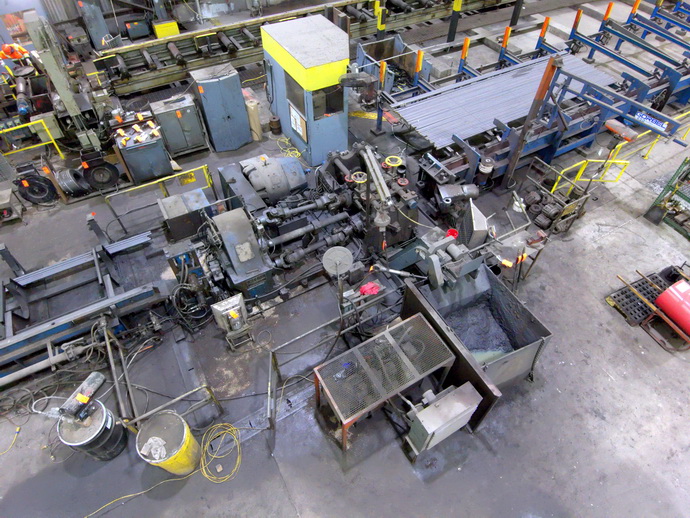

• NDT Testing Line; Consisting Of 45' Heavy Duty Loading Rack; with Bar Indexing System; 50' Power Roller Feed Conveyor; Bar Marking System; 60' Exit Power Roller Conveyor
• Scotchman Model 9075 75-Ton Hydraulic Ironworker
• (170) Sections Teardrop Pallet Racking, 42” x 14’ Uprights, Beams 8’ x 4” Cap
• Bar Mill Roughing Mill Pinch Roll

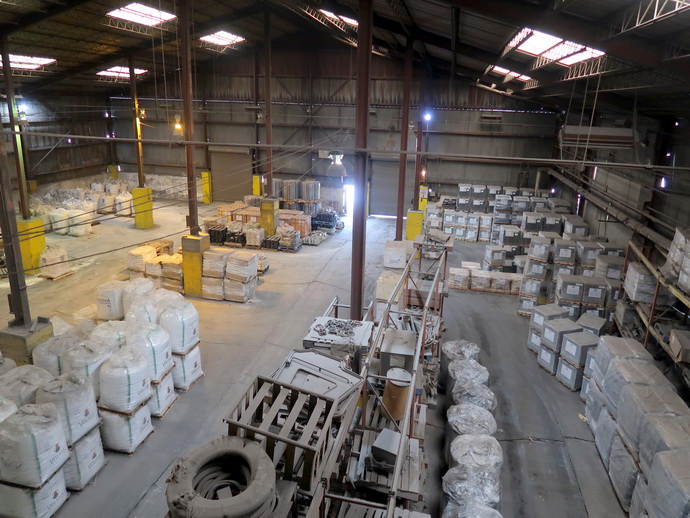

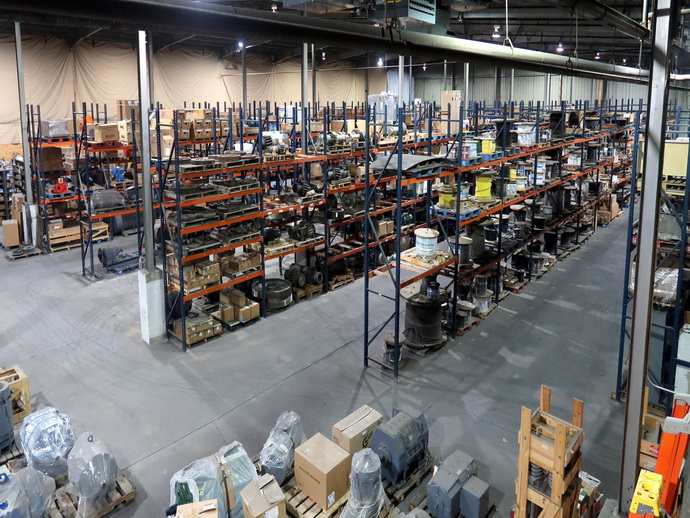

Massive Spare Parts Storeroom/ Raw Materials Inventory & Consumables

– For a Preliminary List, Videos & Photos of MRO Please Click on the following Link:

Alton Steel Storeroom List Pictures & Videos

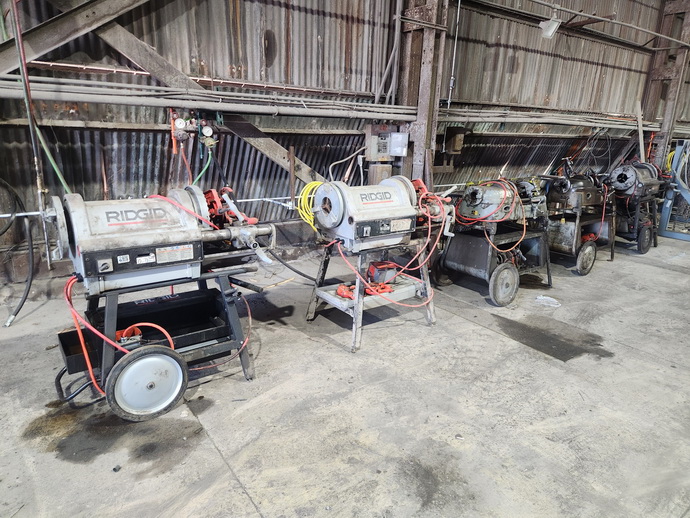

Also included are Maintenance shops, Drill Presses, Pallet Racking, Rigid Pipe Threaders, Laser Mike Laser Micrometers, Nelson Stud Welding Model 101 Stud Welder, Crimpers, H Frame Presses, Benches; Steel Horses and Stands; Double End Grinders; Ladders; Pedestal Fans; Pneumatic Tools; Banding Units; Self Dumping Hoppers; Flammable Material Storage Cabinets; Wheelbarrows; Portable Heaters; Hand and Power Tools; etc. Jobox Gang Boxes; DeWalt Chop Saws; 2-Ton Portable Shop Crane; Portable Heaters; Ryobi 2,200-Watt Gas Generator; Miller Model SRH-444 Arc Welder; Airco Model 3DDRS--24-B Bumblebee Welder; Kalamazoo Model H9AW Horizontal Band Saw; Gorbel 1/2-Ton Jib Crane, with Hoist; Flammable Material Storage Cabinet; Miller Model Goldstar 400SS Arc Welder; Steele Model SP-GG750E 7,500-Watt Gas Generator; Bolt Threaders, Much More To Much to List
